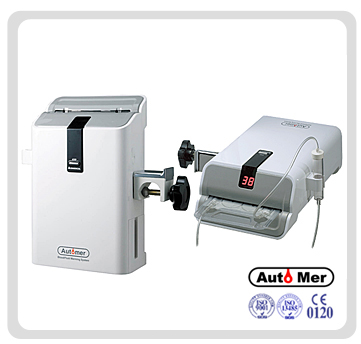

¢ºThe AutoMer Blood/Fluid warming system applies advances dry heat technology to obtain just the right fluid temperature for your
00surgical patients. And, the single use cassette reduces the risk of cross-contamination. Now you have the choice and versatility of
00two warming cassette to meet your clinical need.
¢ºBenefit
- Provides reliable, low-maintenance dry-heat technology.
- Advanced system design offers easy-to-use fluid warming cassette.
- Fully compatible with in-line IV hand pumps.
- Fluid temperature is automatically regulated.
- The warming plate adjusts according to the desired temperature of the fluid.
¢ºEasy to use
- Simply slide in the disposable fluid warming cassette and the system is operational.

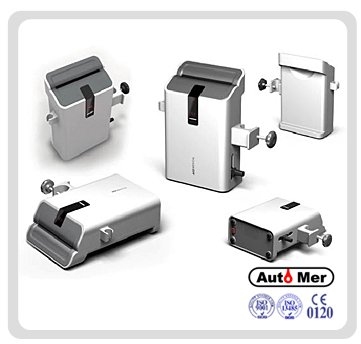

- Compact and portable can be mounted on existing IV poles.
- No special training is required. |
| |
| Classification |
Class 1, Type B applied part
Not suitable for use in the presence of a flammable
Anesthetic mixtures with air or nitrous oxid |
| Power |
AC 220V, 60Hz |
| Set
point temperature |
41¡É |
| IPX
Grade |
0 |
| Alarm |
- Hi ( Over temperature at 42¡É ) |
| Delivery
flow rate |
Max 30,000ml/hr ( 300mmHg,
14G catheter ) |
| Warm
up time |
Approximately 1 minute |
| Controller |
Platinum resistance thermometer : ¡¾1 digit max
Analog input : ¡¾0.5% FS ¡¾1 digit max |
| Weight |
3.0Kg |
| Dimensions |
187W ¡¿ 62H ¡¿ 292D mm |
| Conformity |
EN60601-1:1990, IEC60601-1-2(EMC.) |
|
| |
|
|
|
