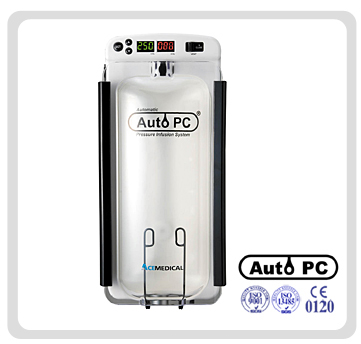

¢ºThis fully automatic
chamber allows for simple, reliable and fast infusion.
¢ºThe pressure level is
maintained with a unidirectional valve whenever the chamber
is moved.
¢ºCleaning
is facilitated and bacteria propagation is avoided with smooth
streamlined surfaces.
¢ºThe
chamber is available in 250ml, 500ml and 1,000ml versions ;
Current pressure is displayed on LCD while operating. |
| |
| Classification |
Class 2 |
| Power |
AC 220V, 60Hz |
| Pressure
Range |
From 100mmHg to 300mmHg |
| Pressure
Increasing |
5mmHg |
| Alarm |
Over Pressure
( Over 20mmHg than Setting Pressure )
Under Pressure
( Under 20mmHg than Setting Pressure ) |
| Weight |
1.5Kg |
| Dimensions |
155W ¡¿ 80H ¡¿ 353D mm |
| Case
quantity |
1 Infusion pressure
device |
| Use
Containers |
With 250 to 1,000ml
solution containers
IV Pole mountable |
|
| |
|
|
|
